Singer Foot Control/Motor Capacitor

95% of 100
72  Reviews Customer score 95%
This is a sewing machine capacitor and is used inside the pedal foot control or in side a motor unit, search to find the correct sewing machine parts here.!. Free UK delivery on all orders over £30
In stock
Call for help or advice 0191 2525825
COVID-19, Deliveries continue but possible delays.

This part is called a capacitor or often called a condenser, its is used inside the foot control of a sewing machine, or its motor or inside the off/on switch. From time to time it will burn out and need to be replaced, usually when it burns our you will get a strong smell with a puff of smoke.

We will not list the machines this will fit as there are thousands, if you need advice please call us.

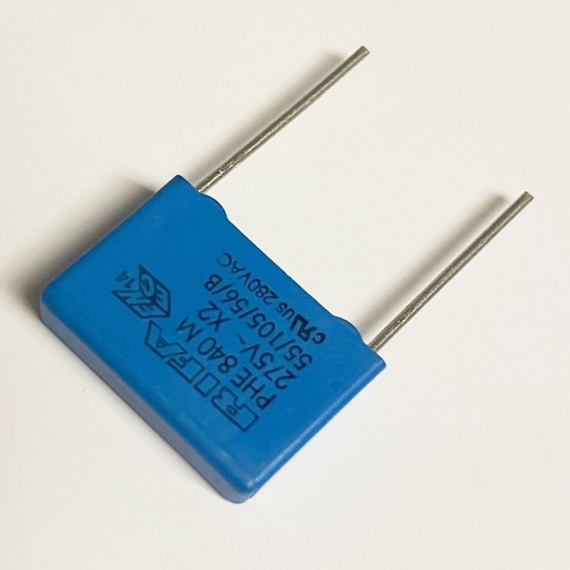

This capacitor is approx 17mm x 10mm x 4 mm deep. It most probably will not look the same shape as the original one you need to replace, but it will do the same job when fitted correctly.

Also please note, because this part is now not manufactured by a sewing machine manufacture it is sourced else where and may have shorter leads than the image or original. The short lead type is ideal for fitting on to motor PCB's, but the leads may need to be extended for fitting into foot controls.

Product Features
Brand Bernina, Brother, Elna, Frister Rossman, Janome, Silver, Jones, Riccar, Newhome, Singer, Toyota
Customer Reviews

Items 1 to 10 of 72 total

Show per page
  1. By Guy O

    Overall rating
    Exactly what I needed - simple to fit and fast delivery even during the current crisis. Recommended.

    Review by from Milton Keynes on

  2. By Roy S

    Overall rating
    Searched Google on why the sewing machine was constantly running. Checked the capacitor on my foot controller and found it was short circuit. Ordered the capacitor from Singer and fitted it in minutes. Machine now fixed and running as normal. Impressed with the reasonable prices and delivery charges. Delivery took a little longer than expected, but Bank Holiday may have had a bearing on this, plus the additional load on Royal Mail due to Covid-19. Thank you Singer Machines for the excellent service.

    Review by from Anglesey on

  3. By Gary H

    Overall rating
    Great website, easy to find what I needed and really low prices. I ordered on a Friday lunch time and it was with me on Monday morning! What more can I say its superb service. Thank you.

    Review by from Spalding on

  4. By Christopher B

    Overall rating
    Found this site via a Google search on why the foot pedal had stopped working. All the previous reviews confirmed I had the same problem, a burnt-out capacitor, and that the item listed here would almost certainly fix my machine, which it did. Very impressed by the reasonable prices for the capacitor and for delivery. On my model the capacitor had to be soldered in place, a simple-enough job. From other reviews it seems many models are even easier as the capacitor simply screws into place.
    Thank you SingerMachines for your excellent service.

    Review by from Gloucestershire on

  5. By Cate S

    Overall rating
    Very quick delivery, fitted no problem wouldn’t go anywhere else for parts, bits and bobs and all you need great site

    Review by from Glasgow on

  6. By Hamid Z

    Overall rating
    We received the spare part (foot control Capacitor) very fast & at a low price. Shipping costs where also very good. Thank a lot.

    Review by from Manchester on

  7. By Jean

    Overall rating
    Very pleased, part arrived after two days. I had the same problem, machine running at full speed and smoke coming from foot pedal. Now my 50 year singer is working thanks to your site and reading reviews.

    Review by from Durham on

  8. By Tessa Phillips

    Overall rating
    To get the part I needed was very quick and very cheap, I was very happy upon receipt but unfortunately this part did not fit my machine

    Review by from Hayes on

  9. By Trisha Hibbit

    Overall rating
    Smaller than I expected and didn’t think it would fit but it did and now I have a fully working sewing machine. Excellent value x

    Review by from Kent on

  10. By Steven Young

    Overall rating
    My wife has an old Singer 99k electric sewing machine which she loves, but as described by several others in these posts, the machine just kept running on as soon as it was plugged in and switched on.
    I Googled the problem and saw that the most likely cause was a blown capacitor in the foot pedal. On closer inspection, the one in our foot pedal looked as if it had blown, but it was a completely different shape to the ones shown on the website, ours being long and cylindrical, the one on the website being a small thin rectangular shape.
    I rang the Singer help-line and the chap I spoke to said that they now only supply the one type and that as far as he knew, the new version had solved the large majority of similar problems, so I ordered one of the new capacitors and it came a couple of days later in the post.
    Fortunately, by folding out the 'pins' or legs, completely flat (90 deg to their supplied position) I was just able to fit the new capacitor without the need to solder any extensions and hey presto, it works perfect.
    For less than £5 including 99p p&p we had solved the problem.

    Review by from Bedford on
